TTO Universal |
TTO Trail Tech Universal Temperature Gauge Black
The surface mounted TTO Digital Temp Gauge allows you to easily monitor engine temperature. Trail Tech's TTO Temperature Gauge offers features that include an easy to read backlit LCD display, and an ultra-thin design.
Overview & Specs
- Easy to read LCD display and an ultra-thin design.
- The LCD display lets you to easily view all gauge readings regardless of the angle or lighting conditions.
- Surface mount for easy install, comes with double sided VHB tape or can be bolted on
- Operating Temperature: -20°C/-4°F to 75°C/167°F
- Storage Temperature: -40°C/-40°F to 75°C/167°F
Description
The included radiator fin and cylinder head sensor assortment allow for the best option based on your application. After removing a sensor from the included array, they can be installed by pressing a radiator fin sensor between the fins of a radiator or replacing a spark plug crush washer with a cylinder head sensor. You can even capture ambient air temp by leaving the sensor wire exposed to the open air. This UNIVERSAL TEMP METER is primarily designed for motor vehicles use, but it is also well suited for DIY applications such as greenhouses, refrigerators, and computers.
If you need TEMP monitoring, then you need this UNIVERSAL TEMP METER!
DISPLAY: Displays ºF/ºC temperature for whatever the copper sensor is attached to. Monitor the max temperature reached and press the front button to see the time-of-day clock.

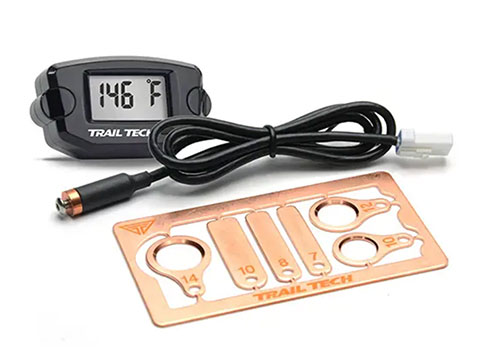

INCLUDED SENSOR CARD: Choice of 6 sensor heads included in the kit. Remove chosen head from the card, then fasten it to the sensor wire with a screw. It is possible to work with homemade DIY copper heads for various uses.
For best performance, use the provided copper sensors.
SENSOR CHOICES: Vehicle coolant sensor heads press into radiator fins (7, 8, and 10mm), or choose an engine ring sensor that replaces a head bolt or spark plug crush washer (10, 12, and 14mm).
BEST USE: Great for monitoring the temperature of UTVs, street, adventure, and off-road motorcycles.
Works great on other vehicles like farm equipment. Use this meter wherever you need to monitor the temperature on your application.
INSTALL: Comes with VHB tape for a quick head unit install or mechanically fastens with M4 (#6) bolts (not included).
BATTERY: The internal battery is NOT replaceable! Ultra-low power design of the product ensures a lifetime of 5+ years. Complete epoxy encapsulation provides the best weather and anti-vibration resistance for the harshest applications.
