How it works:
The IVOPROP operates on a COMPLETELY NEW AND UNIQUE adjustable pitch system that allows for substantially less hardware and rotating mass than any other ground pitch adjustable prop. The unique pitch adjustment design operates on the principle of twisting the blades through the chrome-moly alloy steel torsional rod cast inside the blade. The outer end of the torsional rod is firmly anchored inside the outer blade section. The round torsional rod is capable of rotating inside the blade, except for the outer end.

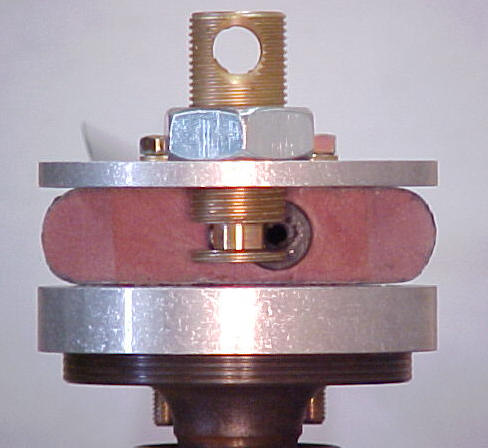

Adjust the pitch on the ground in a matter of seconds by turning the screw adjustor in the center of the prop. The super cams are installed on the end of the torsional rod. Each super cam fits into the groove in the screw adjustor. Turning the screw adjustor causes each cam to rotate and turn the torsional rod twisting the blade changing the prop pitch. The Ivoprop comes with six (6) 8mm x 17mm bolts and fits the standard prop bolt pattern found on most paramotors, including the Compact Radial 313cc and the Corsair Black Devil 172cc. The Fresh Breeze paramotors require a Hub Adapter to allow this prop to be used on their units. The large adjustment bolt is 1" OD with17 threads/inch. Read the History of Ivoprop. More Pictures.
NOTICE:
Please choose carefully. Due to the delicate nature of propellers, returns are limited. We cannot accept returns on propellers once they have been bolted to the engine. We will not accept returns on propellers that have been wound up or flown even once.
Propellers must be packed very carefully as they are easy to damage in shipping. We suggest a good deal of extra padding and cardboard to protect the ends. If the propeller is damaged during return shipping we will not be able to issue you a refund, so consider insuring it with the shipper so you have financial remedy if it is damaged.
IVOPROP
Ultralight Model Quick Adjustable Propellers
Unavailable at this time
|
|
